產品類型:振蕩篩
上架時間:2022-07-25
瀏覽次數:490
產品簡述:Applications本機適用于制藥,化工,食品等行業的干粉物料粒度的分級之用。This machine is suitable for grading the granularity of dry powder materials in pharmaceutical, chemical and food industries.Working principle本機由篩箱,振動源及減震器三大部分組成。振動機架與篩箱連接有4-12組軟橡膠減震器上下...
產品詳情

Applications

本機適用于制藥,化工,食品等行業的干粉物料粒度的分級之用。

This machine is suitable for grading the granularity of dry powder materials in pharmaceutical, chemical and food industries.

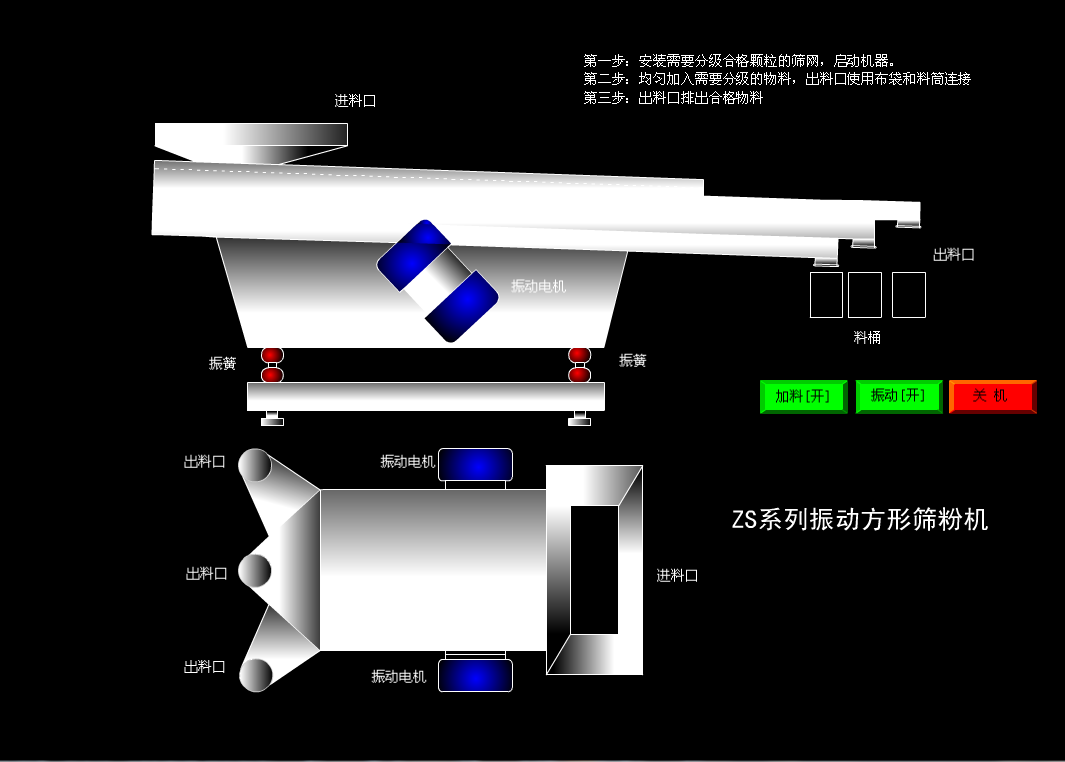

Working principle

本機由篩箱,振動源及減震器三大部分組成。振動機架與篩箱連接有4-12組軟橡膠減震器上下固定, 產生離心力,由震器控制浮動振幅,

使物料有一個向下拋震和向下分層過濾的過程,從而達到*佳分級過篩的效果。

The machine consists of screen box, vibration source and shock absorber. There are 4-12 groups of soft rubber shock absorbers

fixed up and down between the vibration frame and the screen box, whick produce centrifugal force and control the floating

amplitude by the shock absorber, so that the material has a process of downward throwing and downward layered filtering , so  as to achieve the best graded screening effect.


技術參數

Model

STCZ-0.3M2

STCZ-0.5M2

STCZ-0.8M2

STCZ-1.2M2

STCZ-1.8M2

Throughput(kg/h)

50-300

80-450

200-700

400-1100

700-1600

Overall dimension(mm)

1450*550*700

1200*660*1250

1650*750*1350

1800*850*1450

2200*1100*1500

Power(kw)

0.2

0.2

0.2*2

0.4*2

0.4*2

Numbers screen(mesh)

2-150

2-150

2-150

2-150

2-150

Vibration frequency(r/min)

1400

1400

1400

1400

1400

Weight(kg)

120

180

220

300

400
